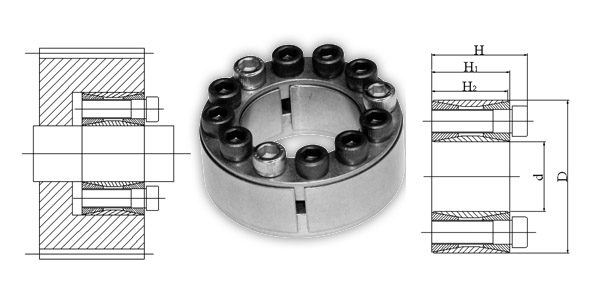

B - Tipi

B CAPT-LOCK
Catalog dXD	fundamental dimensions			internal hexagon headed bolt		rated load		Pf N/mm2	MA N.M	G kg
Catalog dXD	H2	H1	H	SIZES	QTY	Ft kN	Mt KN.M	Pf N/mm2	MA N.M	G kg
KB19 X 47B KB20 X 47B KB22 X 47B KB25 X 50B KB28X55B	17 17 17 17 17	20 20 20 20 20	27.5 27.5 27.5 27.5 27.5	M6X18 M6X18 M6X18 M6X18 M6X18	8 8 8 9 10	26 27 27 30 33	0.27 0.27 0.30 0.38 0.47	210 210 195 190 185	14 14 14 14 14	0.2 0.24 0.23 0.25 0.30
KB30 X 558 KB35 X 60B KB38 X 63B KB40 X 65B KB42 X 72B	17 17 17 17 20	20 20 20 20 24	27.5 27.5 27.5 27.5 33.5	M6X18 M6X18 M6X18 M6X18 M8X22	10 12 14 14 12	33 40 46 46 65	0.50 0.70 0.88 0.92 1.36	175 180 185 180 200	14 14 14 14 35	0.29 0.32 0.33 0.34 0.48
KB45 X 75B KB50 X 80B KB55 X 85B KB60 X 90B KB65 X 95B	20 20 20 20 20	24 24 24 24 24	33.5 33.5 33.5 33.5 33.5	M8X22 M8X22 M8X22 M8X22 M8X22	12 12 14 14 16	72 71 83 83 93	1.62 1.77 2.27 2.47 3.04	210 190 200 180 190	35 35 35 35 35	0.57 0.60 0.63 0.69 0.73
KB70X110B KB75X115B KB80X120B KB85X125B KB90X130B	24 24 24 24 24	28 28 28 28 28	39.5 39.5 39.5 39.5 39.5	M10X25 M10X25 M10X25 M10X25 M10X25	14 14 14 16 16	132 131 131 148 147	4.60 4.90 5.20 6.30 6.30	210 195 180 195 180	70 70 70 70 70	1.26 1.33 1.40 1.49 1.53
KB95X135B KB100X145B KB105X150B KB110X155B KB120X165B	24 29 29 29 29	28 33 33 33 33	39.5 47.0 47.0 47.0 47.0	M10X25 M12X30 M12X30 M12X30 M12X30	18 14 14 14 16	167 192 190 191 218	7.90 9.60 9.98 10.50 13.10	195 195 185 180 185	70 125 125 125 125	1.62 2.01 2.10 2.15 2.35
KB125X170B KB130X180B KB140X190B KB150X200B KB160X210B	29 34 34 34 34	33 38 38 38 38	47.0 52 52 52 52	M12X30 M12X35 M12X35 M12X35 M12X35	18 20 22 24 26	220 272 298 324 350	13.78 17.60 20.90 24.20 28.0	180 165 165 170 170	125 125 125 125 125	2.95 3.51 3.85 4.07 4.30
KB170X225B KB180X235B KB190X250B KB200X260B KB210X275B	38 38 46 46 50	44 44 52 52 56	60 60 68 68 74	M14X40 M14X40 M14X45 M14X45 M14X50	22 24 28 30 24	386 420 490 525 599	32.90 37.80 46.50 52.50 62.89	160 165 150 150 151	190 190 190 190 295	5.78 6.05 8.25 8.65 10.10
