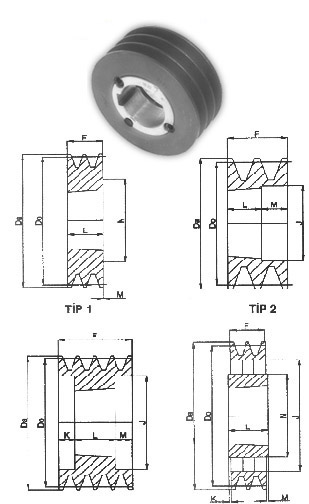

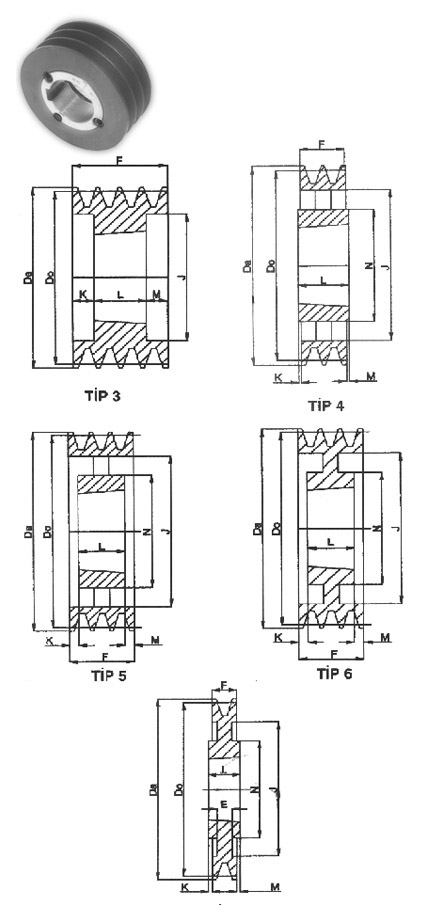

SPC (22'lik Burçlu V Kasnaklar)

Parça No Code	Anma Çapı Diameter	Dış Çapı Da Diameter	Kanal No Groove	Burç No Bush	Max.Delik Max. Bore	Kasnak Tipi Pulley type	F	L
SPC 140/2	140	149.6	2	2012		2	60	30
140/3	140	149.6	3	2012		3	85	30
SPC 150/2	150	159.6	2	2012		2	60	30
150/3	150	159.6	3	2517		2	85	45
SPC 190/2	190	199.6	2	2517		2	60	45
190/3	190	199.6	3	2517		3	85	45
190/4	190	199.6	4	3020		4	111	51
190/5	190	199.6	5	3020		5	136	51
SPC 200/3	200	209.6	3	2517	60	3	85	45
200/4	200	209.6	4	3020	75	3	111	51
200/5	200	209.6	5	3535	90	3	136	89
200/6	200	209.6	6	3535	90	3	162	89
200/8	200	209.6	8	3535	90	3	213	89
SPC 212/3	212	221.6	3	3020	75	3	85	51
212/4	212	221.6	4	3020	75	3	111	51
212/5	212	221.6	5	3535	90	3	136	89
212/6	212	221.6	6	3535	90	3	162	89
212/8	212	221.6	8	3535	90	3	213	89
SPC 224/2	224	233.6	2	3020	75	3	60	51
224/3	224	233.6	3	3020	75	3	85	51
224/4	224	233.6	4	3535	90	3	111	89
224/5	224	233.6	5	3535	90	3	136	89
224/6	224	233.6	6	3535	90	3	162	89
224/8	224	233.6	8	3535	90	3	213	89
SPC 236/3	236	245.6	3	3020	75	3	85	51
236/4	236	245.6	4	3535	90	3	111	89
236/5	236	245.6	5	3535	90	3	136	89
236/6	236	245.6	6	3535	90	3	162	89
236/8	236	245.6	8	3535	90	3	213	89
SPC 250/2	250	259.6	2	3020	75	3	60	51
250/3	250	259.6	3	3020	75	3	85	51
250/4	250	259.6	4	3535	90	3	111	89
250/5	250	259.6	5	3535	90	3	136	89
250/6	250	259.6	6	3535	90	3	162	89
250/8	250	259.6	8	3535	90	3	213	89
250/10	250	259.6	10	4040	100	3	264	102
SPC 265/3	265	274.6	3	3535	90	1	85	89
265/4	265	274.6	4	3535	90	3	111	89
265/5	265	274.6	5	3535	90	3	136	89
265/6	265	274.6	6	3535	90	3	162	89
265/8	265	274.6	8	3535	90	3	213	89
SPC 280/2	280	289.6	2	3020	75	5	60	51
280/3	280	289.6	3	3535	90	1	85	89
280/4	280	289.6	4	3535	90	6	111	89
280/5	280	289.6	5	3535	90	3	136	89
280/6	280	289.6	6	3535	90	6	162	89
280/8	280	289.6	8	3535	90	3	213	89
280/10	280	289.6	10	4040	100	3	264	102
SPC 300/2	300	309.6	2	3020	75	5	60	51
300/3	300	309.6	3	3535	90	7	85	89
300/4	300	309.6	4	3535	90	6	111	89
300/5	300	309.6	5	3535	90	6	136	89
300/6	300	309.6	6	3535	90	6	162	89
300/8	300	309.6	8	4040	100	3	213	102

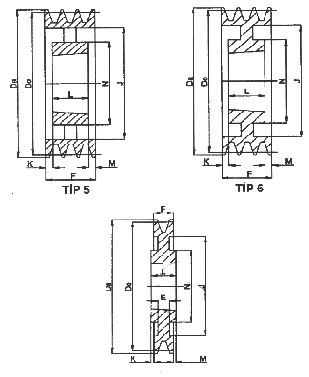

SPC (22'lik Burçlu V Kasnaklar)

Parça No Code	Anma Çapı Diameter	Dış Çapı Diameter	Kanal No Groove	Burç No Bush	Max.Delik Max. Bone	Kasnak Tipi Pulley Type	F	L
SPC 315/3	315	324.6	3	3535	90	7	85	89
315/4	315	324.6	4	3535	90	6	111	89
315/5	315	324.6	5	3535	90	6	136	89
315/6	315	324.6	6	3535	90	6	162	89
315/8	315	324.6	8	4040	100	3	213	102
315/10	315	324.6	10	4545	110	3	264	114
SPC 335/2	335	344.6	2	3020	75	5	60	51
335/3	335	344.6	3	3535	90	7	85	89
335/4	335	344.6	4	3535	90	6	111	89
335/5	335	344.6	5	3535	90	6	136	89
335/6	335	344.6	6	3535	90	6	162	89
335/8	335	344.6	8	4040	100	6	213	102
SPC 355/3	355	364.6	3	3535	90	7	85	89
355/4	355	364.6	4	3535	90	6	111	89
355/5	355	364.6	5	3535	90	6	136	89
355/6	355	364.6	6	3535	90	6	162	89
355/8	355	364.6	8	4040	100	6	213	102
355/10	355	364.6	10	4545	110	3	264	114
SPC 375/3	375	384.6	3	3535	90	7	85	89
375/4	375	384.6	4	3535	90	6	111	89
375/5	375	384.6	5	3535	90	6	136	89
375/6	375	384.6	6	4040	100	6	162	102
375/8	375	384.6	8	4545	110	6	213	114
SPC 400/2	400	409.6	2	3020	75	5	60	51
400/3	400	409.6	3	3535	90	7	85	89
400/4	400	409.6	4	3535	90	6	111	89
400/5	400	409.6	5	3535	90	6	136	89
400/6	400	409.6	6	4040	100	6	162	102
400/8	400	409.6	8	4545	110	6	213	114
400/10	400	409.6	10	5050	125	6	264	127
SPC 425/3	425	434.6	3	3535	90	7	85	89
425/4	425	434.6	4	3535	90	6	111	89
425/5	425	434.6	5	4040	100	6	136	102
425/6	425	434.6	6	4545	110	6	162	114
425/8	425	434.6	8	5050	125	6	213	127
SPC 450/3	450	459.6	3	3535	90	4	85	89
450/4	450	459.6	4	3535	90	5	111	89
450/5	450	459.6	5	4040	100	5	136	102
450/6	450	459.6	6	4545	110	6	162	114
450/8	450	459.6	8	5050	125	6	213	127
450/10	450	459.6	10	5050	125	6	264	127
SPC 475/3	475	484.6	3	3535	90	4	85	89
475/4	475	484.6	4	3535	90	5	111	89
475/5	475	484.6	5	4040	100	5	136	102
475/6	475	484.6	6	4545	110	6	162	114
475/8	475	484.6	8	5050	125	6	213	127
